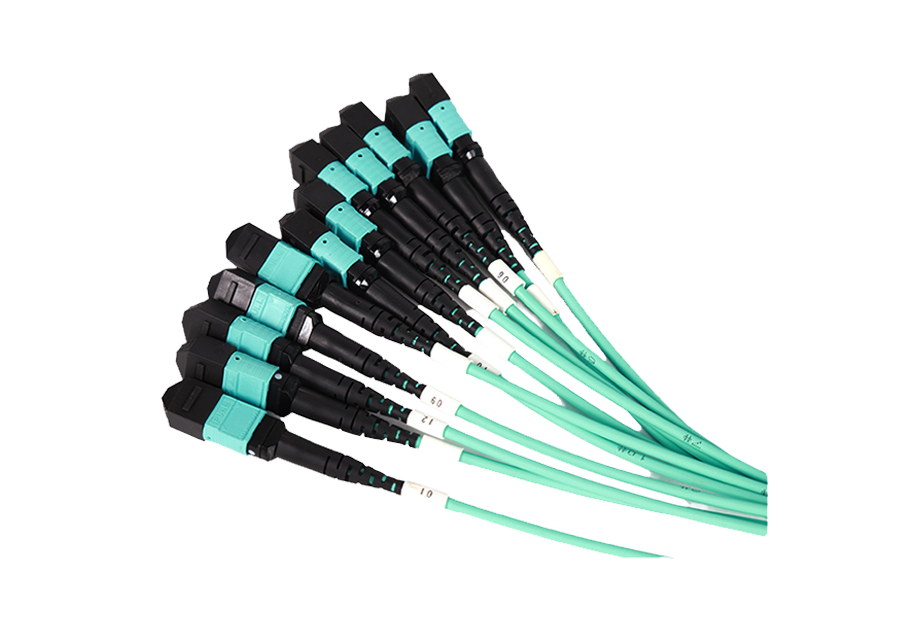

MPO/MTP optical fiber connectors can be equipped with male and female connectors.

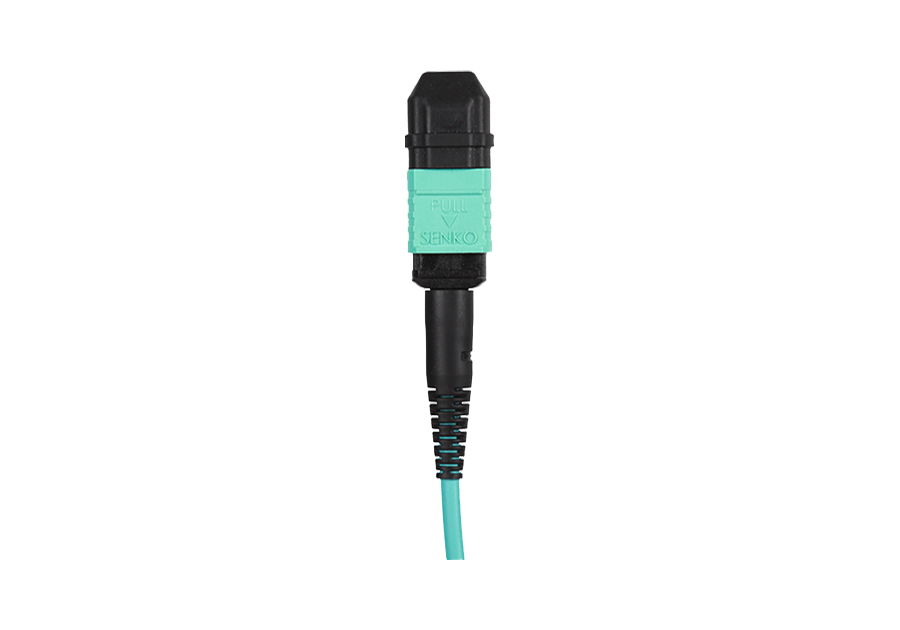

MPO/MTP multi-core number connector, precision multi-core ferpin, push-pull locking structure.

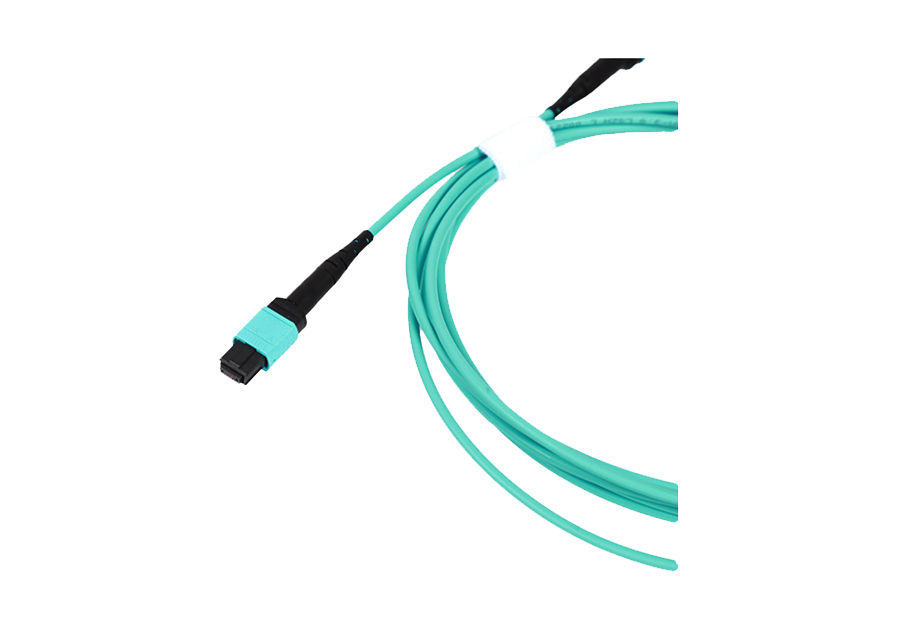

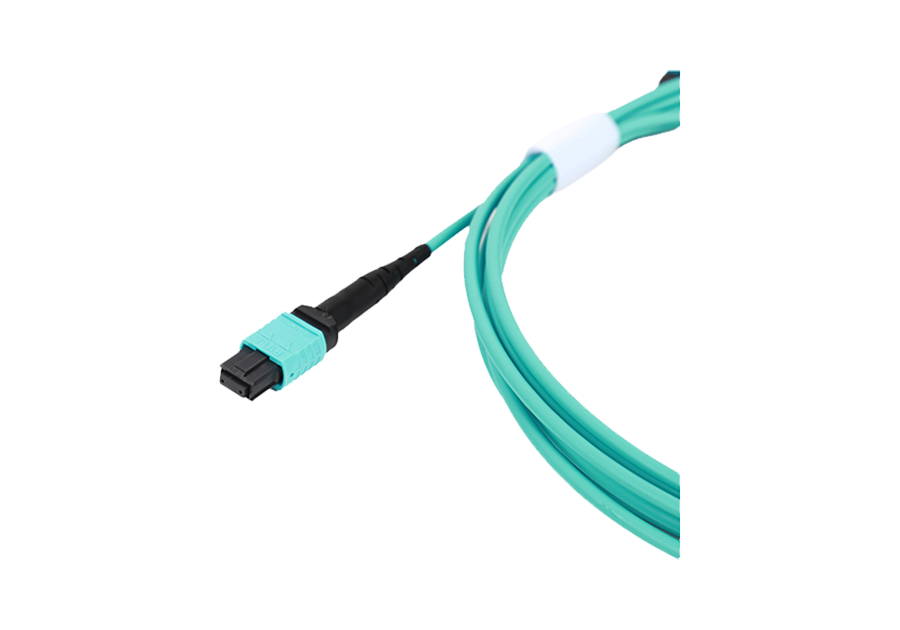

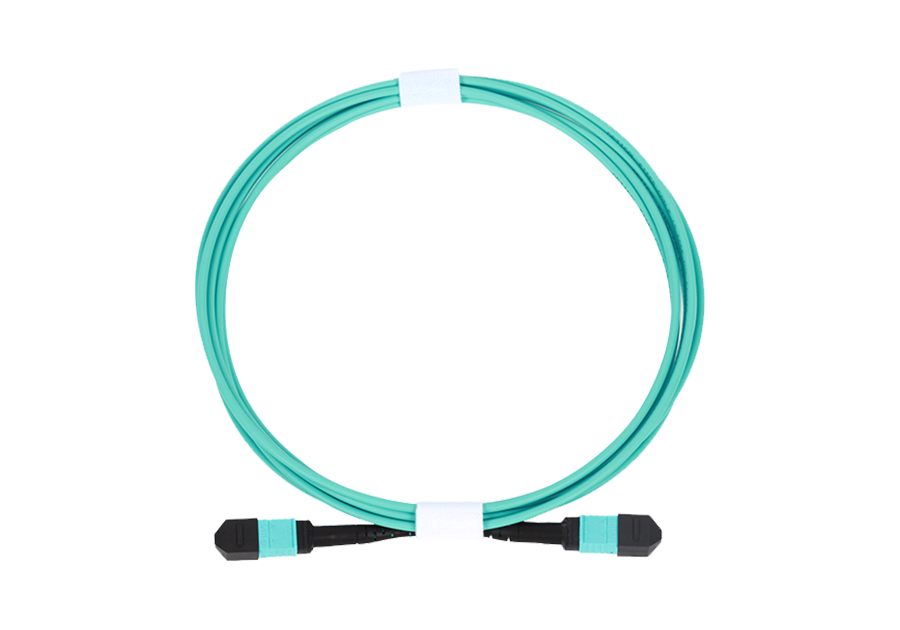

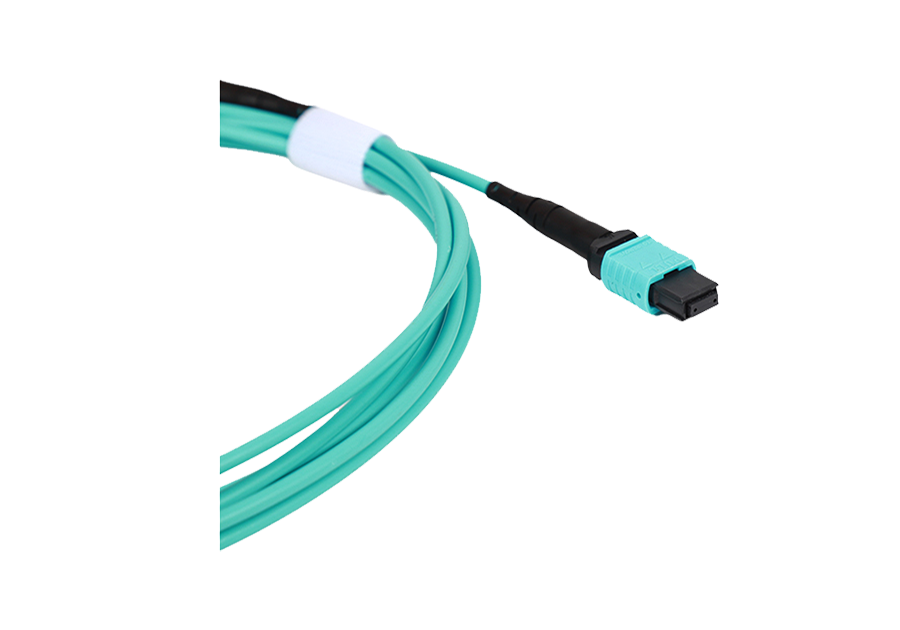

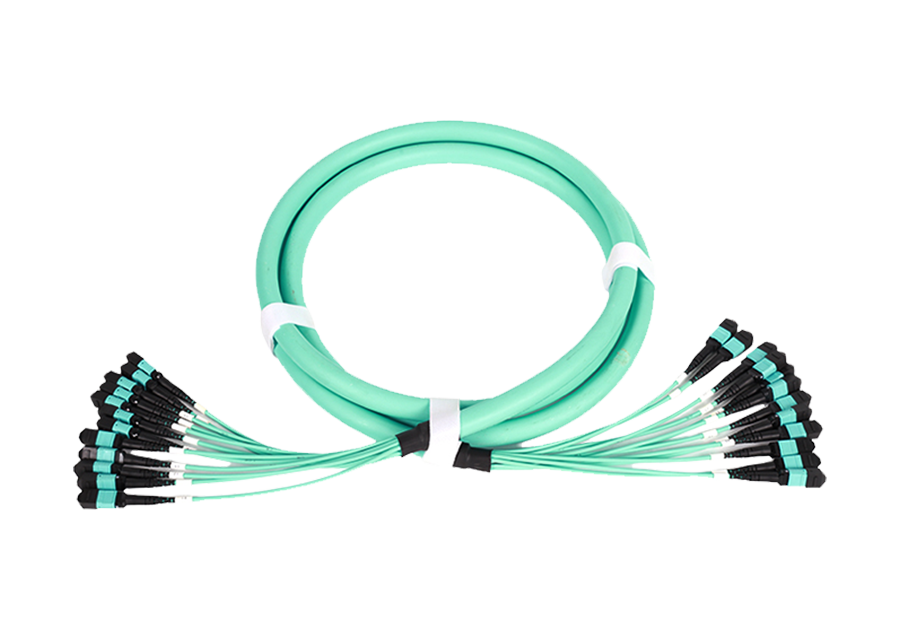

MPO/MTP optical fiber connector patch cords can be made of ribbon optical cables or mini bare fibers.
The MPO/MTP optical fiber connector complies with IEC61754, IEC61755 and GR-1435-CORE.
The MPO from Japan and the MTP optical fiber connector plugs from the United States feature long plug and pull life, interchangeable links, and stable and secure data.
Corning 50/125 OM3/OM410G, 40G, 100G imported multimode fiber cores from the United States feature stable transmission and low light loss during welding.
The plastic parts of the MPO/MTP connector components are injection-molded from brand-new raw materials, while the metal parts are made of all copper and stainless steel. They are heat-resistant, environmentally friendly, sturdy and durable, do not deform, do not break, and are not easy to fall off. They are widely used.
The outer sheath of its optical cable is made of brand-new PVC/LSZH plastic material, which is bright and lustrous, highly resilient, does not fade, break or deform easily. It is environmentally friendly, low in smoke and non-toxic, ensuring worry-free export.
The internal tensile aramid fiber of the optical cable is made of DuPont bulletproof vest material from the United States. It is highly flame-retardant, low smoke, non-toxic, and has extremely strong toughness. The tensile protection of the fiber core enhances the tensile force of the connector, which is unparalleled, with a tensile capacity far exceeding 100N.
| Optical performance | ||||||
| Name | Unit | Parameter | ||||
| Connection head | - | Single-mode standard ferrule | Single-mode low insertion loss ferrule | Multi-mode standard ferrule | Multi-mode low insertion loss ferrule | |
| Insertion loss | Typical value | (dB) | 0.35 | 0.20 | 0.35 | 0.20 |
| Maximum value | (dB) | 0.75 | 0.35 | 0.60 | 0.35 | |
| Return loss | (dB) | ≥60 For APC(8°) | ≥20 For PC | |||
| (dB) | ≥50 For PC | - | ||||
| Male head/female head | Steel needle | Male head (with a small steel needle) Female head (without) | ||||
| Tensile strength | (N) | Max 60N | ||||
| Vibration | (Hz) | 10 - 55Hz | ||||
| Temperature cycle | (℃) | -40℃ ~ +70℃ | ||||
| End face geometric parameters | |||
| Name | Unit | Parameter | |
| Single mode | Multimode | ||
| X-axis radius of curvature | (mm) | Minimum value: 2000mm | |
| Radius of curvature along the Y-axis | (mm) | Minimum value: 5mm | |
| Optical fiber height | (nm) | 1000~3500 | |
| Overall height difference of optical fibers | (mm) | Maximum value: 500 | |
| Height difference between adjacent optical fibers | (mm) | Maximum value: 300 | |
| X-axis Angle | (°) | -0.2 ~ 0.2 | |
| Y-axis Angle | (°) | PC: -0.2 ~ 0.2 APC: 7.8 ~ 8.2 | |
| Fiber optic depression | (nm) | N/A | -100 ~ 200 |
