⑴ Installed in 19-inch racks and cabinets, it is used for centralized management of module boxes.

⑵ The increase in the number of ports is achieved through modular design, providing high-density fiber connection capabilities.

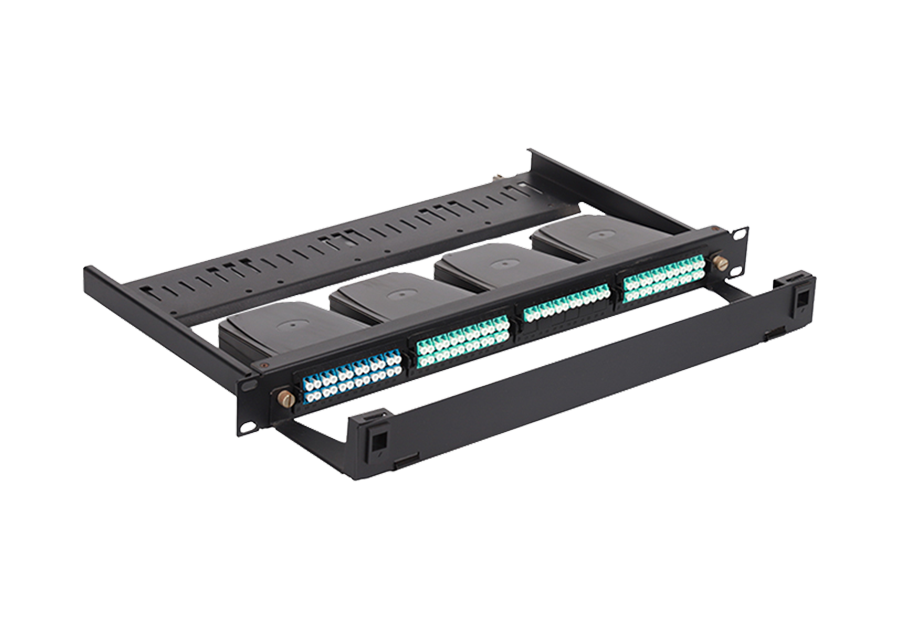

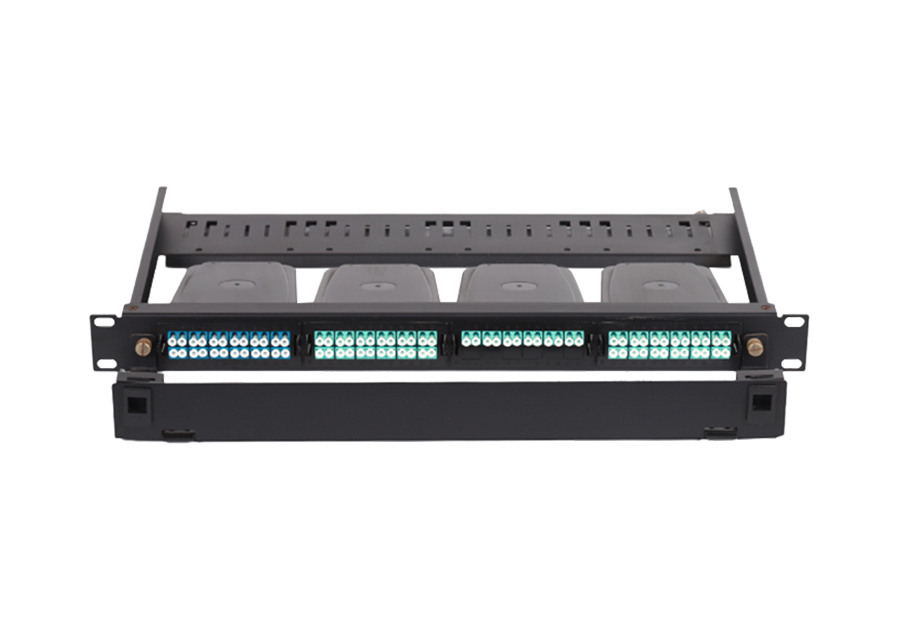

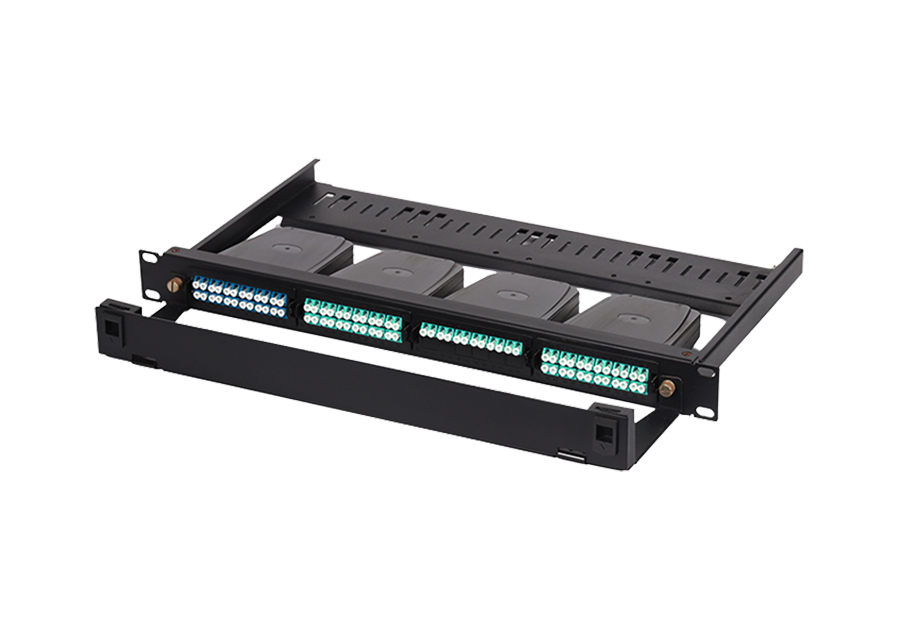

⑶ The MPO 1U optical fiber distribution box can install 4 MPO termination boxes. When the termination boxes are equipped with duplex LC adapters, the maximum number of optical fiber cores that can be managed is 96. When the termination boxes are equipped with simplex SC adapters, the maximum number of optical fiber cores that can be managed is 48. If an MPO adapter board is installed, the maximum number of optical fiber cores that can be managed is 288.

⑷ The MPO 2U optical fiber distribution box can install 8 MPO pre-terminated boxes. When the terminated boxes are equipped with duplex LC adapters, they can manage up to 192 optical fiber cores at most. When the terminated boxes are equipped with simplex SC adapters, they can manage up to 96 optical fiber cores at most. If an MPO adapter board is installed, the maximum number of optical fiber cores that can be managed can reach 576.

⑸ The MPO 3U optical fiber distribution box can be equipped with 12 MPO pre-termination boxes. When LC adapters are installed on the termination boxes, the maximum number of optical fiber cores that can be managed is 288. When simplex SC adapters are installed on the termination boxes, the maximum number of optical fiber cores that can be managed is 144. If MPO adapters are installed, the maximum number of optical fiber cores that can be managed is 864.

⑹ Made of high-quality cold-rolled steel plates;

⑺ After undergoing strict degreasing, pickling, anti-rust phosphating and pure water cleaning, the sheet material is electrostatically powder-coated with a thickness of 80μm-100μm, meeting the European ROHS environmental protection standard.

⑻ The design of the optical fiber distribution frame includes the cable management frame and label strips.

⑼ The patch panel has the advantages of easy installation and convenient management.

⑽ It is more than four times the density of the traditional fused fiber patch panel, greatly saving the space of the cabinet, improving the utilization rate of the cabinet, and creating value for the construction of data centers.

⑾ The modular structure is adopted for convenient upgrade and maintenance.

⑿ It is designed with 1U/2U/3U cable management racks.
