Product features

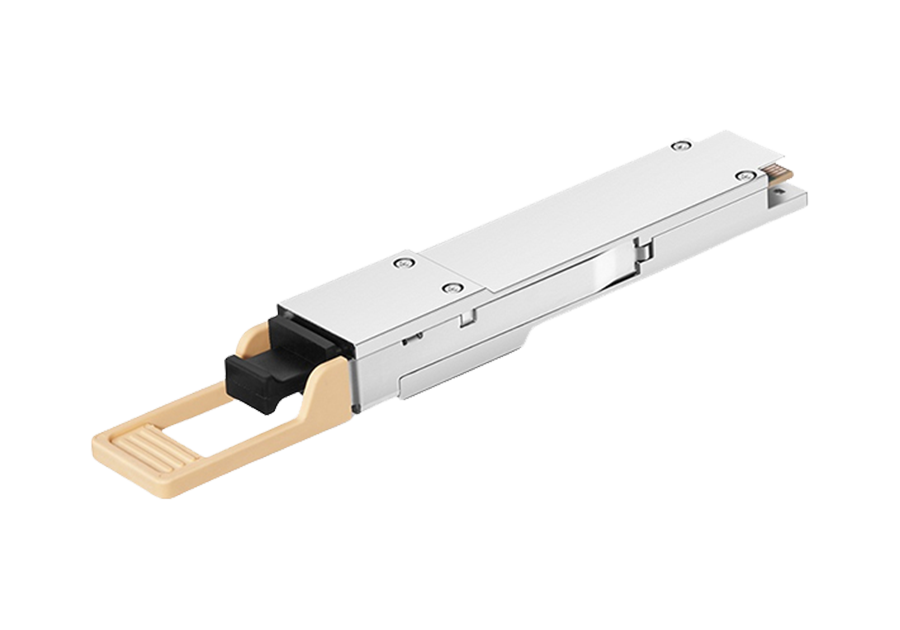

• Hot-swappable QSFP-DD form factor

• The temperature range of the casing is from 0℃ to +70℃

• The maximum link length on OM4 is 100 meters

• Optical fiber with KP4 FEC +3.3V single power supply

• Power consumption < 10W

• Working housing temperature for commercial use: 0°C to +70 °C

• MPO-16 APC connector

• Complies with RoHS standards

Application

• 400G 100m on OM4 with FEC

• Adaptive Tx input equalization

• Programmable Rx output amplitude

• Programmable Rx output cursor before output

• Programmable cursor after Rx output

• Power Supply Voltage Monitoring (DDM_Voltage

• Transceiver housing temperature monitoring (DDM_Temperature)

• Tx transmission optical power monitoring (DDM_TxPower) for each channel

• Tx bias current monitoring (DDM_TxBias) for each channel

• Rx receiving optical power monitoring (DDM_RxPower) for each channel

• Warning and alert indications for each DDM function

• Tx and Rx LOL and LOS indications

• Tx fault indication

• Host and line side loopback function

• PRBS generator and inspector functions on the host and line sides

• CDB firmware upgrade function

• Multi-functional diagnostic monitoring (VDM) function (optional, with additional power consumption)

• Other functions defined in CMIS

• Supports IB and ETH

• Up to 106.25

• Achieve a data rate of Gbps per channel through PAM4 modulation

• 4 duplex channel transmitters and receivers

• 4x100G PAM4 SIP modulator

• A single MPO-12 connector socket is compatible with optical interfaces

• Single +3.3V power supply

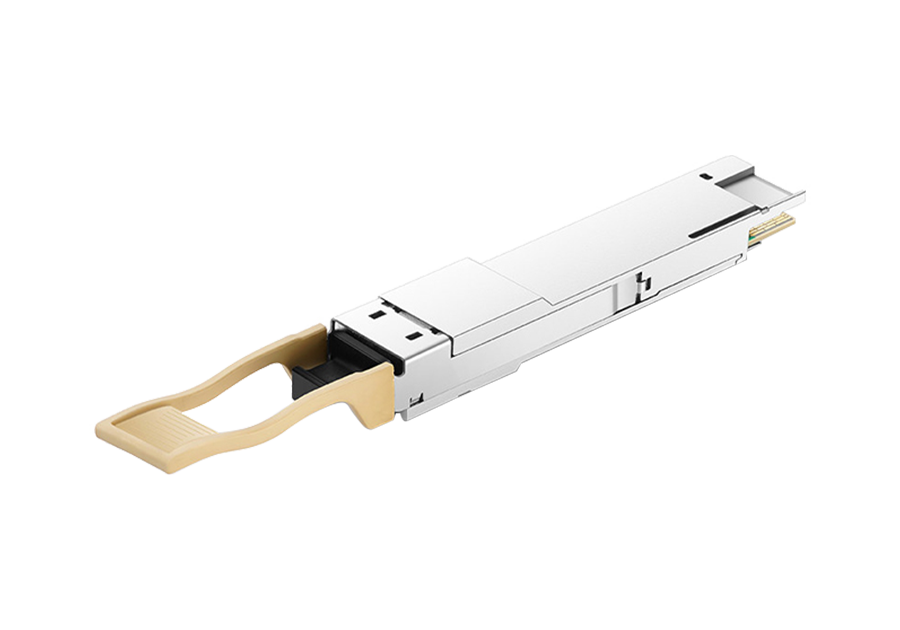

• Hot-swappable OSFP RHS form factor

• The maximum link length on the 12-core MPO SM optical fiber is 500m

• Low power consumption: <9W

• Operating temperature range: 0℃ to +70℃

• International Level 1 laser safety certification

• Compliant with RoHS6.0

Application

• 400G Ethernet

• Unlimited broadband support

• The switch is connected to the router

• Data center

• Other 400G interconnects

• Aggregation mode

  The 400GBASE-DR4 is compatible with 4x 53.125GBd PAM4

  400GAUI-8 is compatible with 8x 26.5625 GBd PAM4

• Branch mode

  4x 100GBASE-DR compatible

  53.125GBd PAM4 100GAUI-2 compatible

  2x 26.5625 GBd PAM4

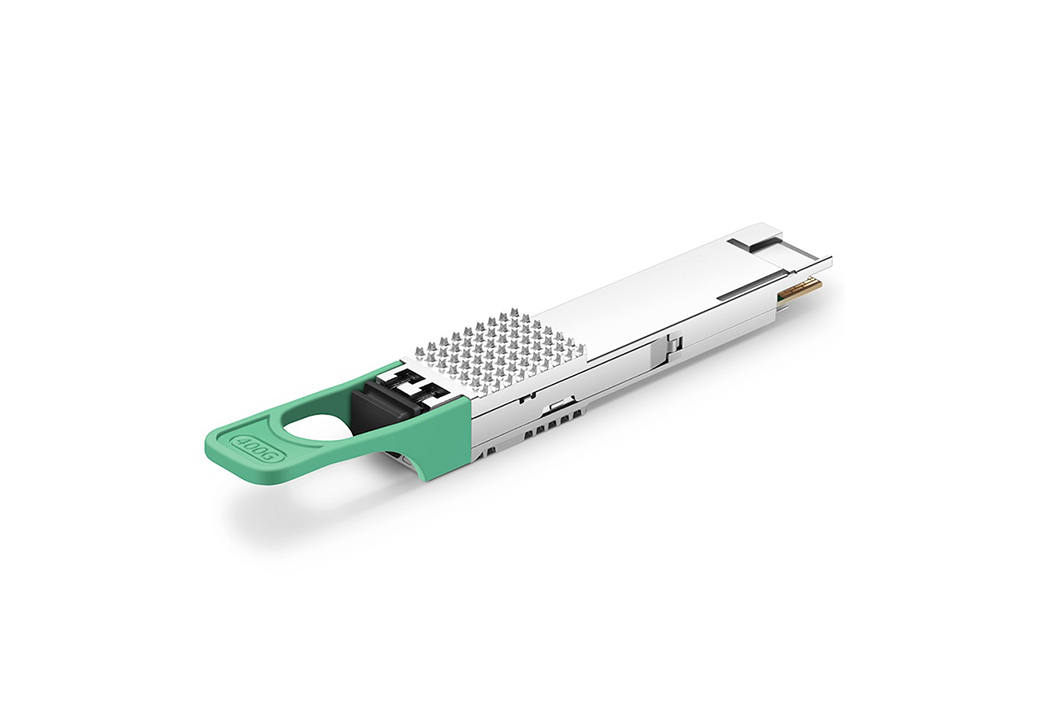

• QSFP-DD MSA compatible

• MPO-12 connector, 8° Angle end face

• Power consumption < 12W

• Operating temperature: 0 to 70℃

• CMIS 4.0 Management interface

Application

• 400GE 500m SMF link for data center

• 400GE to 4x 100GE branches, over 500m

• Switch/router interconnection

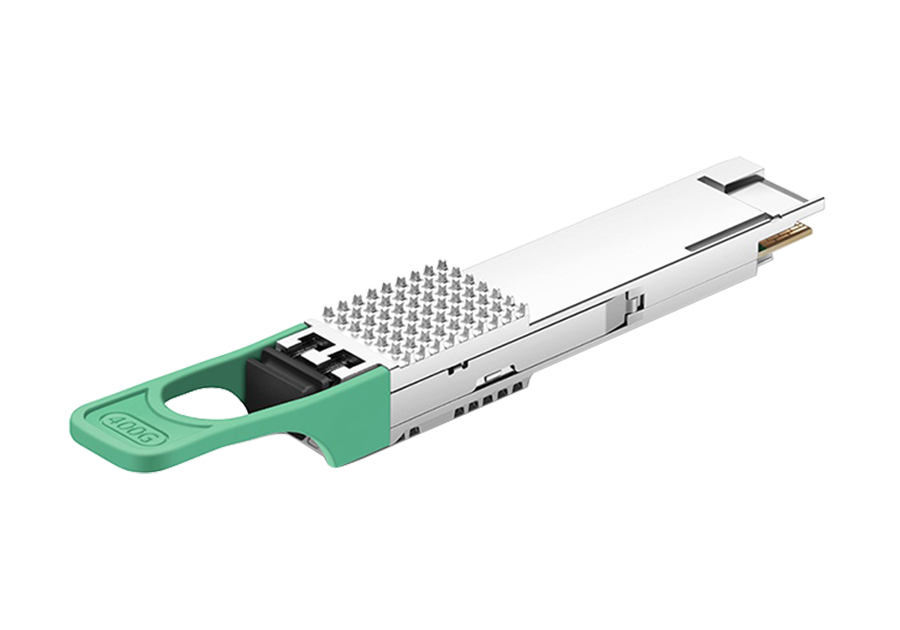

• Compliant with QSFP-DD MSA

• Complies with the 400G FR4 specification in 100G Lambda MSA

• 4 CWDM channels MUX/DEMUX design

• 8x53.125Gb/s PAM4 electrical interface (400GAUI-8)

• The maximum power consumption is 12W

• LC duplex connector

• The transmission distance of single-mode optical fiber with FEC can reach up to 2 kilometers

• Operating temperature: 0-70℃

• Single 3.3V power supply

• Compliant with RoHS-6

Application

• 400G Ethernet

• Data center applications

• Enterprise Network

Compliance

• QSFP-DD MSA

• 400G-FR4 Technical specification

• CMIS Rev4.0

• Compliant with RoHS

• GR-468-CORE
