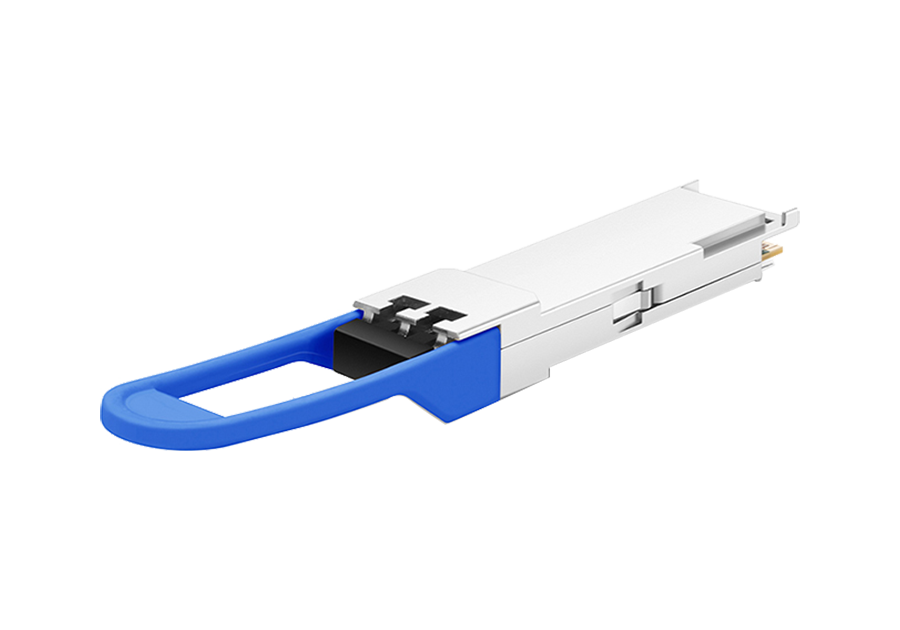

Product features

• Supports an aggregated bit rate of 103.1Gb/s

• 4x25Gb/s electrical interface

• The maximum link length on OM4 multimode fiber is 100 meters

• Hot-swappable QSFP28 takes up space

• Single MPO 12 sockets

• Low power consumption

• Compliant with RoHS-6 standards and lead-free

• +3.3V single power supply

• Supports digital diagnostic monitor interface

• Commercial operating temperature of the casing: 0°C to +70°C

Application

• 100GBASE-SR4 100G Ethernet

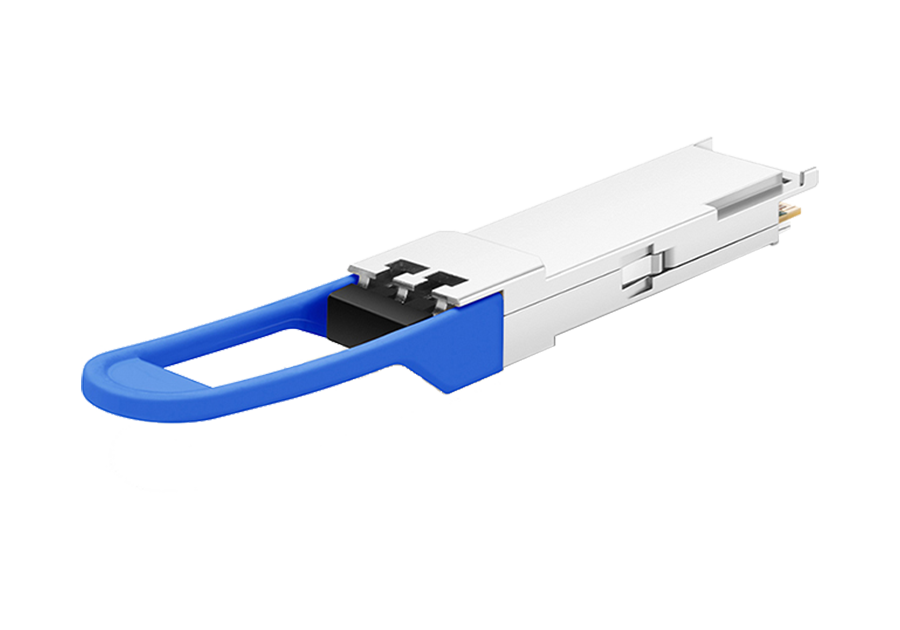

Product features

• Hot-swappable QSFP28 MSA form factor

• Complies with IEEE 802.3ba 100GBASE-LR4

• The transmission distance of G.652 SMF can reach up to 10 kilometers

• Single +3.3V power supply

• Operating temperature: 0-70℃

• Transmitter: Cooled 4x25Gb/s LAN WDM TOSA

• Receiver: 4x25Gb/s PIN ROSA

• 4x28G Electrical Serial Interface (CEI-28G-VSR)

• Maximum power consumption: 4W

• Duplex LC socket

• Complies with RoHS-6 standards

• Sealed TOSA

Application

• 100GBASE-LR4 Ethernet link

• Unlimited wideband QDR and DDR interconnection

• 100G telecom connection on the client side

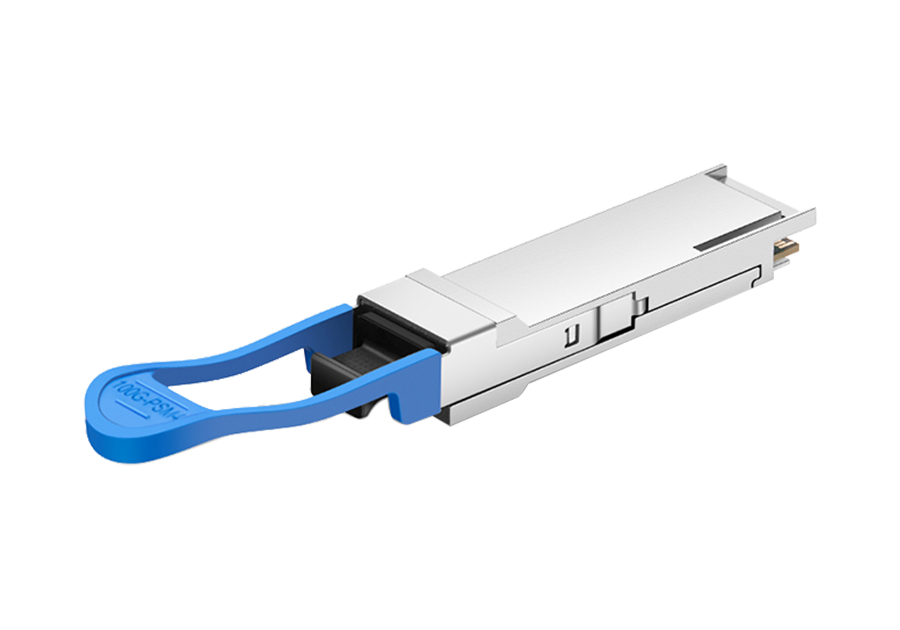

Product features

• Four-channel full-duplex transceiver module

• The data transmission rate of each channel can reach up to 26Gbit/s

• The transmission distance of single-mode optical fiber can reach up to 2 kilometers

• Low power consumption <3.5W

• Operating temperature: 0 to 70℃

• 3.3V power supply voltage

• Complies with RoHS 6 requirements

• Hot-swappable QSFP28 form factor

• Single MPO connector socket

• Built-in digital diagnostic function

Application

• 100G Ethernet

• Proprietary high-speed interconnection

• Data center

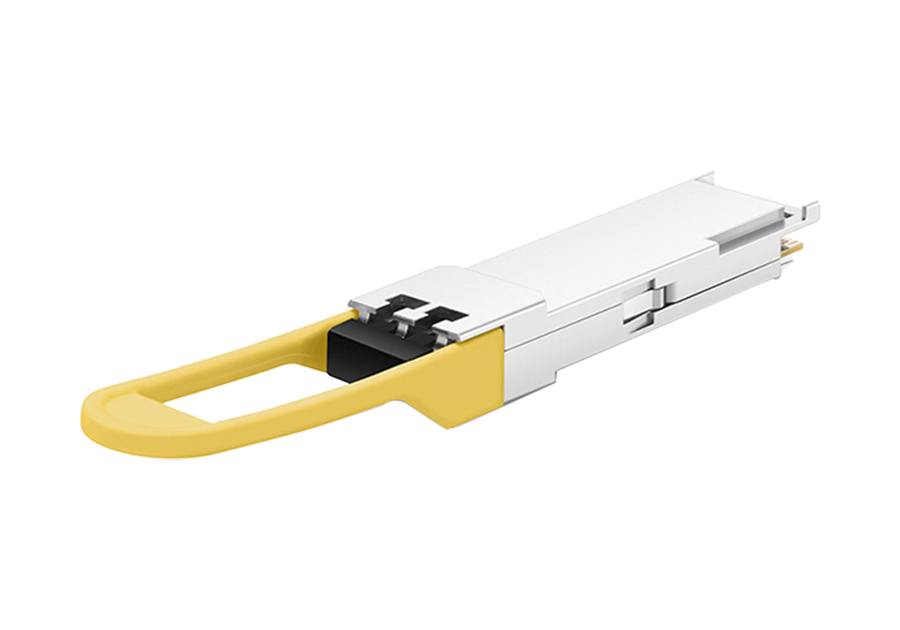

Product features

• Four-channel full-duplex transceiver module

• The data transmission rate of each channel can reach up to 26Gbit/s

• The transmission distance of single-mode optical fiber can reach up to 2 kilometers

• Low power consumption <3.5W

• Operating temperature: 0 to 70℃

• 3.3V power supply voltage

• Complies with RoHS 6 requirements

• Hot-swappable QSFP form factor

• LC connector socket

• Built-in digital diagnostic function

Application

• 100G Ethernet

• Proprietary high-speed interconnection

• Data center

• 100G CWDM4 application with FEC

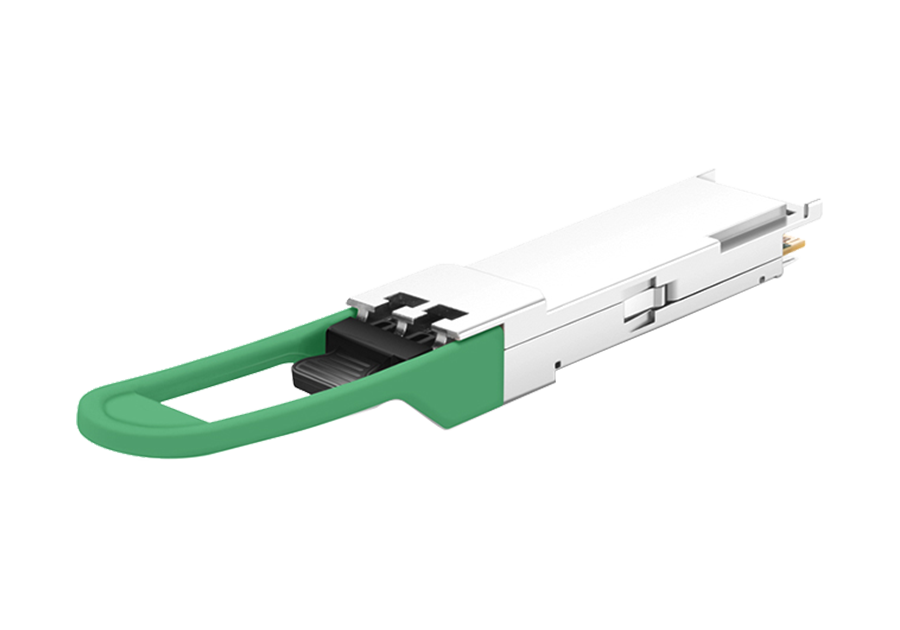

Product features

• Complies with QSFP28 MSA requirements

• Hot-swappable 38-pin electrical interface

• 4 LAN-WDM channels with MUX/DEMUX design

• 4x25G electrical interface

• Maximum power consumption: 6.5W

• LC duplex connector

• Supports an aggregated bit rate of 103.125Gb/s

• The transmission distance of single-mode optical fiber can reach up to 80 kilometers

• Operating temperature: 0-70℃

• Single 3.3V power supply

• Complies with RoHS 2.0 requirements

Application

• 100GBASE-ZR4 100G Ethernet

• Telecommunication network

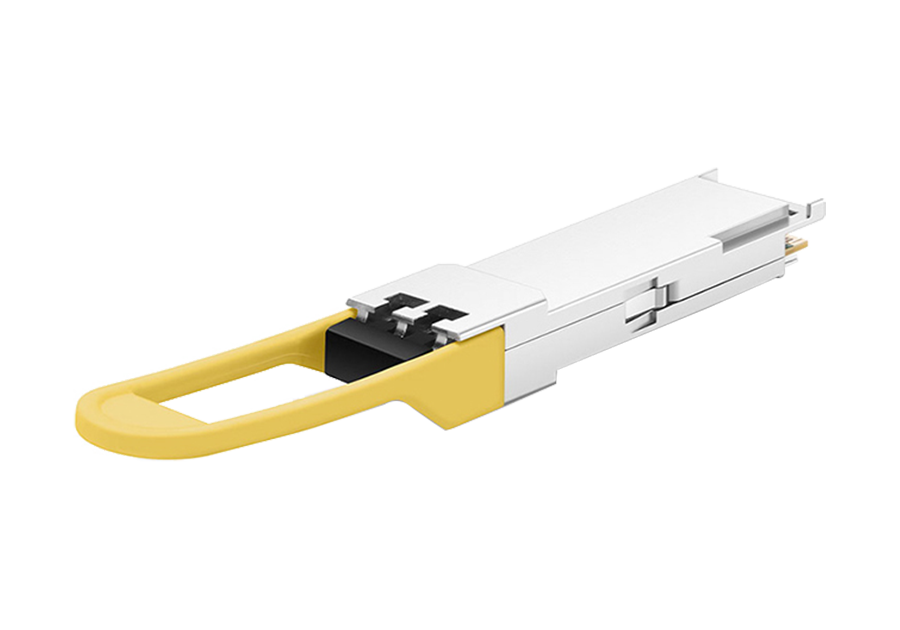

Product features

• Supports optical data rate of 106.25Gb /s PAM4

• Supports electrical interface 4×25.78125 Gb/s NRZ

• The transmission distance through SMF with FEC can reach up to 500 meters

• QSFP28 pluggable package with LC connector

• Maximum power consumption: 4W

• Operating temperature: 0℃ to 70℃

• 3.3V power supply

• I2C management interface

Application

• 100G Ethernet

• Data Center Application

• Enterprise Network

Compliance

• SFF-8636

• SFF-8665

• SFF-8679

• IEEE 802.3-2018 / 802.3cd
