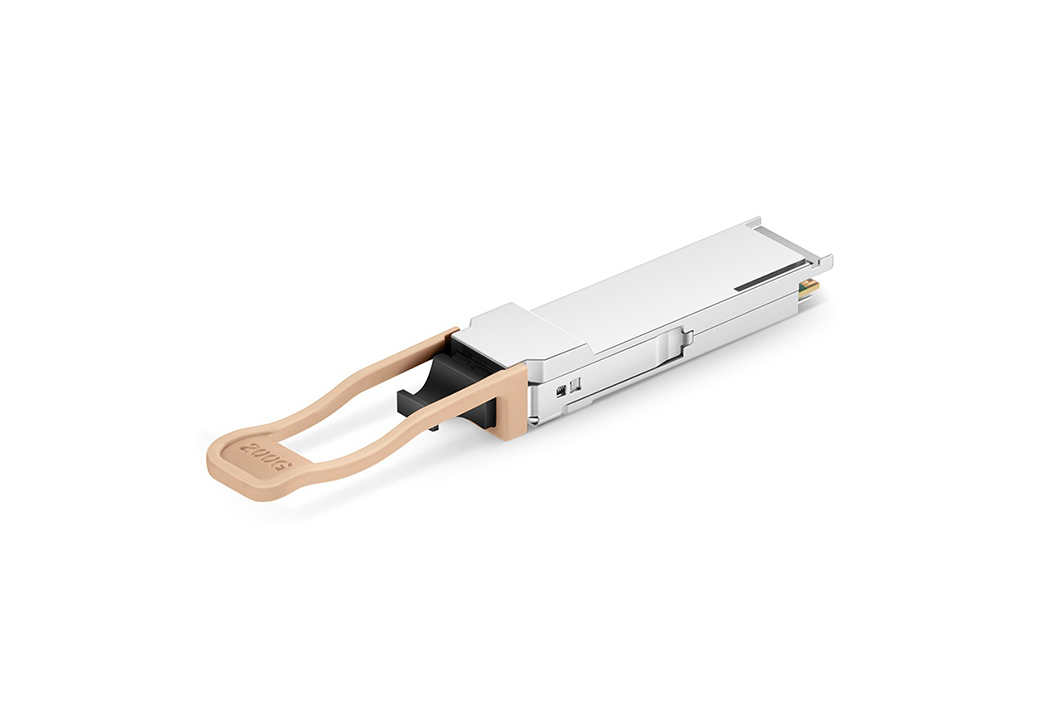

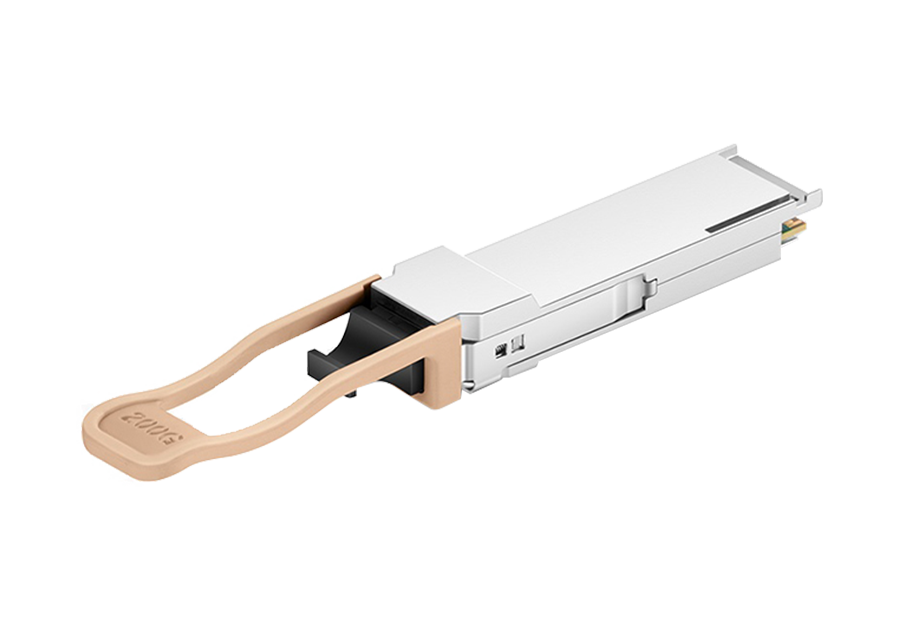

Product features

• QSFP56 serial optical interface

• 4x50G PAM4 re-timing 200GAUI-4 C2M electrical interface

• MPO-12 connector

• 4-channel VCSEL array and 4-channel PIN photodetector array

• The maximum link length on OM3 is 70 meters, and on OM4 it is 100 meters

• Complies with the QSFP MSA standard

• Hot-swappable QSFP56 form factor

• Complies with the SFF8636 Rev 2.10a standard

• Supported protocol: Complies with the IEEE 802.3cd standard

• Low power consumption: Less than 5W within the temperature range of 0 to 70℃

Application

• 200GBASE-SR4 200G Ethernet

• Data center
